Laboratory Press Parts and Accessories for Carver Presses
Safety Shields with Hinged Front Access Door
Attractive cabinet encloses pressing area to protect operator from objects which might fly from the compression area. Hinged front access door is clear, shatterproof polycarbonate. Recommended for use on all presses. Will accommodate heated platens.
Reference Table
| Part # | Description – Fits Most Models with or without heat |
|---|---|
| 3404 | Mini “C” presses |
| 3295 | Model “C” presses |
| 3253 | Model “M” presses |
| 3322 | Presses with 10″ x 7″ Work Area |
| 3418 | Presses with 12″ x 12″ Work Area |
| 4427 | Presses with 15″ x 15″ Work Area |
Laboratory Press Parts and Accessories for Carver Presses
Testing and Processing Equipment Including Polished Plates, Evacuable Pellet Dies, Test Cylinder Outfits (TCO’s) and Many Other Items for Labs
Polished Pressing Plates
Polished stainless steel pressing plates for laminating applications. (Picture shows all 3 different sizes available) Reference Table Below
Evacuable Pellet Dies
Used with Pellet Presses to form the pellets for use in IR and x-ray spectroscopy. The stainless steel die includes a fitting for vacuum source connection. (6, 12, 13, 25, 31 and 40mm dies available.) Reference Table Below Not recommended for use in heated presses.
Test Cylinder Outfits (TCO’s)
No. 2090-0 – 1.125″ Unheated Stainless Steel Test Cylinder Outfit (TCO’s)
No. 2091-5 – 2.25″ Unheated Stainless Steel Test Cylinder Outfit (TCO’s)
Consult factory for special test cylinder sizes. For molding, forming bricks, briquettes, pressure forming, crushing, pressing plant and animal tissues, fluid extraction, extrusion and flow tests. Note: For use in Carver standard presses (excluding pellet presses) Reference Table Below Not recommended for use in heated presses.
Test Cylinder Outfits (TCO’s)
No. 2090.1 Filter Pads
12 Filter pads for 1.125″ sized test cylinders
No. 2091.1 Filter Pads
12 Filter pads for 2.25″ sized test cylinders
Plate Kit Assemblies
No. 5021 KBr Buffer Plate and 6″ x 6″ Single Hardened Steel Platen with Centering Grooves
No. 5022 KBr Buffer Plate and 9″ x 9″Single Hardened Steel Platen with Centering Grooves
Recommended for use with pellet dies and test cylinder outifts. Picture shows 5021 installed in 3851 press.
No. 3874 Vacuum Pump
Used with pellet presses to evacuate gases from pellet dies. Includes vacuum gauge and connecting tubing. Available in 115V or 230V. (please specify)
No. 5456 Proppant Crush Test Cylinder
This die is designed to test proppant used in the hydraulic fracturing process. Based on ISO 13503-2:2006(E) Crush Cell.
Cell: 2″ ID x 3.38″ tall including removable base, wall thickness is >0.5″
Piston: 3.5″ tall
All parts constructed of D2 Tool Steel, hardened to 52-56 Rockwell C
No. 2092 Swivel Bearing Plate
Carver presses are frequently used for crushing and breaking tests of standard 2″ x 2″ cubes and 2″ x 4″ cylinders of concrete samples or similar crushing tests. Swivel Bearing Plates adjust slightly to the sample to assure proper application of pressure. For unheated models only. Requires safety shield.
No. 818744C Pharmaceutical Punch and Die Holder
This punch and die holder permits testing of pellet and tablet samples. It works with standard BB2 type tooling in most Carver presses, including Auto Series presses. The set includes an anodized aluminum holding fixture, steel shims to adjust for various size samples, and an anodized aluminum ejector. (Does not include dies) Not recommended for use in heated presses.
No. 2094 Cage Equipment
When using Carver presses to press moisture from fibrous materials, extract fats, oils or juices from vegetable or animal tissues, splitting chilled oils or separating crystals from liquors, these accessories are useful. Cage equipment consists of cylinder, plunger, steel discs, felt discs, tray and bulb syringe. Requires a daylight opening of 16 inches. Not recommended for use in heated presses.
No. 237005 Stainless Steel Pan
Fluid pan for use with Test Cylinder Outfits.The stainless steel pan captures the release fluid. Also included with purchase of unheated Test Cylinder Outfits.
Heated Test Cylinder Outfits
No. 2472-1 (115V) & 2472-2 (230V) 1.125″ ID
No. 2417-1 (115V) & 2417-2 (230V) 2.25″ ID
Complete with band heater, insulation, thermostat, stainless steel housing and handle. Max. force 35,000 lbs for 1.125″ and 99,000 lbs for the 2.25″ applied load @ 400°F. (Not for use with Model 4350 Series, Mini C, Model C Presses or Heated Presses. This TCO may be used in an unheated Model M with plate kit 5022) Reference Table Below Not recommended for use in heated presses. (Picture shows 2472)
Reference Table
| Proppant Crush Test Cylinder | |
|---|---|
| 5456 | 2″ ID Proppant Crush Test Cylinder based on ISO 13503-2:2006(E) |
| Available Plate Kit Assemblies | ||
|---|---|---|
| Part Number | Description | Recommended For |
| 5021 | Includes: (1) KBr Buffer Plate (90mm diameter), mounts to the Top Bolster and (1) 6″ x 6″ hardened steel plate with centering grooves, mounts to the Moving Bolster on top of ram. | Used with Dies and Test Cylinder Outfits |
| 5022 | Includes: (1) KBr Buffer Plate (90mm diameter), mounts to the Top Bolster and (1) 9″ x 9″ hardened steel plate with centering grooves, mounts to the Moving Bolster on top of ram. | Used with Dies and Test Cylinder Outfits |
Laboratory Press Parts and Accessories for Carver Presses
Floor Stands for Standard Bench Top Laboratory Presses
No. 223160C Floor Stand for Model’s 6112 & 6125 – 30” high x 23.5” wide x 23.5” deep, 150 lbs – open floor stand with work table.
No. 223171D Press Floor Stand – 30″ high x 19″ wide x 19″ deep, 125 lbs – enclosed floor stand for all 2 and 4 column presses except Model 3690 & 3693 Series.
No. 223215C Press Floor Stand – 30″ high x 35″ wide x 26″ deep, 260 lbs. with 6″ casters for use with 2 and 4 column manual presses except Model 3690 & 3693 Series.
No. 223321D Press Stand for Standard PL Auto Series (excluding 48 ton models) – 24″ high x 51″ wide x 23.5″ deep, 385 lbs.
No. 223319C Press Stand for Standard PL Auto Series w/ 6″ Casters (excluding 48 ton models) – 21″ high x 51″ wide x 23.5″ deep, 385 lbs.
Contact Factory if you have an older Auto Series DR/PR/NE, and older manual Model’s 3690 & 3693 for Floor Stands.
Laboratory Press Parts and Accessories for Carver Presses
Tile Molds and Color Dispersion Molds

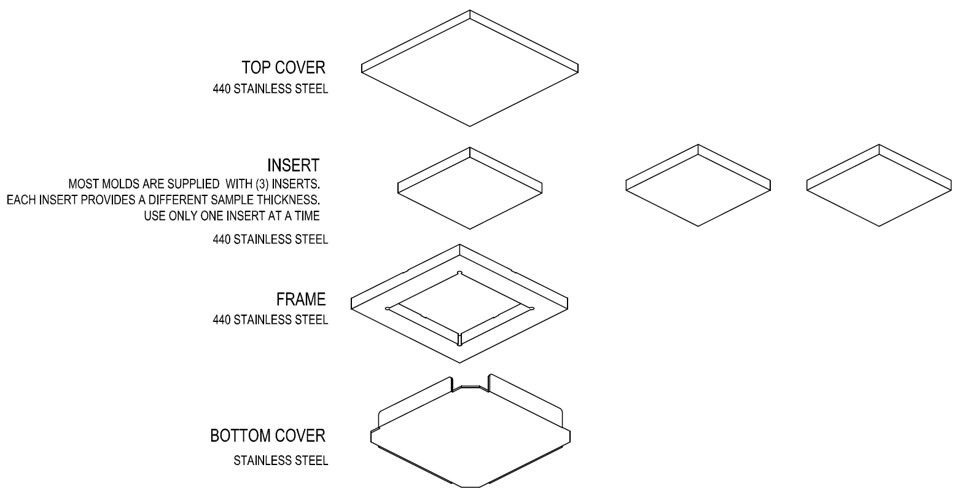

Tile Mold – 400 Series Stainless steel frame with top and bottom covers. Includes 3 inserts for various sample thicknesses. Can be used up to 400˚F to form plastic or rubber sheets.
Color Dispersion Disc Mold – 400 Series Stainless steel frame. Includes 3 spacers for various film thicknesses. For making plastic film to check color dispersion or clarity. Provides precise film thickness and parallelism.
| Catalog Number | Description | Sample Dimensions | Sample Thickness |
|---|---|---|---|
| 818701D | Tile Mold | 50mm x 50mm | 1mm, 2mm, 5mm |
| 818702D | Tile Mold | 100mm x 100mm | 1mm, 2mm, 5mm |
| 818703D | Tile Mold | 150mm x 150mm | 1mm, 2mm, 5mm |
| 818704C | Color Dispersion | 50mm diameter | 0.1mm, 0.2mm, 0.5mm |
| 818705D | Color Dispersion | 100mm diameter | 0.1mm, 0.2mm, 0.5mm |
| 818698D | Tile Mold | 4″ x 4″ | 1mm, 2mm, 5mm |
| 818699D | Tile Mold | 6″ x 6″ | 1mm, 2mm, 5mm |
| 818700D | Tile Mold | 10″ X 10″ | 1mm, 2mm, 5mm |
Laboratory Press ASTM Molds, Mold Accessories, Test Cylinder Outfits (TCO’s), and Pellet Die Sets
| ASTM Chase Frame Kits – Used for Molding Polyethylene Test Plaques, which include (2) Aluminum Backup Plates and 50 Mylar Sheets | |||
|---|---|---|---|
| Catalog Number | Description | Sample Dimensions | Material |
| 4079 | ASTM Chase Frame Kit | 4″ x 4″ x 1/8″ | Teflon Coated Steel |
| 4080 | ASTM Chase Frame Kit | 4″ x 4″ x 1/8″ | Stainless Steel |
| 4081 | ASTM Chase Frame Kit | 4″ x 4″ x 1/8″ | Brass |
| 4082 | ASTM Chase Frame Kit | 6″ x 6″ x 1/8″ | Teflon Coated Steel |
| 4083 | ASTM Chase Frame Kit | 6″ x 6″ x 1/8″ | Stainless Steel |
| 4084 | ASTM Chase Frame Kit | 6″ x 6″ x 1/8″ | Brass |
| 4085 | ASTM Chase Frame Kit | 8″ x 8″ x 1/8″ | Teflon Coated Steel |
| 4086 | ASTM Chase Frame Kit | 8″ x 8″ x 1/8″ | Stainless Steel |
| 4087 | ASTM Chase Frame Kit | 8″ x 8″ x 1/8″ | Brass |
| 4161 | (100) Mylar Sheets for 6″ x 6″ Molds | 4″ x 4″ | Mylar |
| 4162 | (100) Mylar Sheets for 8″ x 8″ Molds | 6″ x 6″ | Mylar |
| 4163 | (100) Mylar Sheets for 10″ x 10″ Molds | 8″ x 8″ | Mylar |
| Test Cylinder Outifts (TCO’s) | |
|---|---|
| 2090-0 | Test cylinder outfit, 1.125″ I.D., constructed of 440SS, except ejector. Complete with plunger, cylinder, base plug and ejector. Includes stainless steel pan and 12 filter pads. Maximum applied load 19 tons. |
| 2090-1 | Set of 12 filter pads for 1.125” sized test cylinders |
| 2091-5 | Test cylinder outfit all stainless steel, 2.25″ I.D., constructed of 440SS. Complete with plunger, cylinder, base plug and ejector. Includes stainless steel pan and 12 filter pads. Maximum applied load 51 tons. |
| 2091-1 | Set of 12 filter pads for 2.25” sized test cylinders |
| 237005 | Stainless steel pan for Test Cylinder Outfits (TCO’s) |
| Not recommended for use in heated presses. | |
| Additional Accessories | |
|---|---|
| 3874 | Vacuum Pump used with pellet presses to evacuate pellet dies. Includes vacuum gauge and connecting tubing. Available in 115V or 230V. (please specify) |
| 818744C | Pharmaceutical punch and die holder for BB2 type tooling only. (Does not include dies) |
| 2092 | Swivel bearing plate (requires safety shield) |
| Pellet Dies | |
|---|---|
| 4417 | 6mm pellet die, constructed of 440 stainless steel, except ejector. Complete with plunger, cylinder, base plug, ejector and (2) anvils. Maximum applied load 3,500 lbs. |
| 4946 | 12mm pellet die, constructed of 440 stainless steel, except ejector. Complete with plunger, cylinder, base plug, ejector and (2) anvils. Maximum applied load 13,000 lbs. |
| 3619 | 13mm pellet die, constructed of 440 stainless steel, except ejector. Complete with plunger, cylinder, base plug, ejector and (2) anvils. Maximum applied load 18,000 lbs. |
| 4369 | 25mm pellet die, constructed of 440 stainless steel, except ejector. Complete with plunger, cylinder, base plug, ejector and (2) anvils. Maximum applied load 47,000 lbs. |
| 3902 | 31mm pellet die, constructed of 440 stainless steel, except ejector. Complete with plunger, cylinder, base plug, ejector and (2) anvils. Maximum applied load 60,000 lbs. |
| 3876 | 40mm pellet die, constructed of 440 stainless steel, except ejector. Complete with plunger, cylinder, base plug, ejector and (2) anvils. Maximum applied load 70,000 lbs. |
| 818744C | Pharmaceutical punch and die holder for BB2 type tooling only. (Does not include dies) |
| 3874 | Vacuum Pump used with pellet presses to evacuate pellet dies. Includes vacuum gauge and connecting tubing. Available in 115V or 230V. (please specify) |
| Not recommended for use in heated presses. | |
| Heated Test Cylinders | |
|---|---|
| 2472 | Heating jacket with 1.125″ test cylinder, complete with band heater, insulation, thermostat, stainless steel housing, handle and 350 watt electric cord. Temperature range up to 600 deg. F. Max. force 35,000 lbs., applied load at 400 deg. F. Offered in 115/230 volt, 1ph supply voltage (please specify). Note: Not for use with Model 4350 Series, Mini C, Model C Presses or heated presses. |
| 2417 | Heating jacket with 2.25″ test cylinder, complete with band heater, insulation, thermostat, stainless steel housing, handle and 350 watt electric cord. Temperature range up to 600 deg. F. Max. force 99,000 lbs., applied load at 400 deg. F. Offered in 115/230 volt, 1ph supply voltage (please specify). Note: Not for use with Model 4350 Series, Mini C, Model C Presses or heated presses. |
| Not recommended for use in heated presses. | |
Laboratory Press Parts and Accessories for Carver Presses

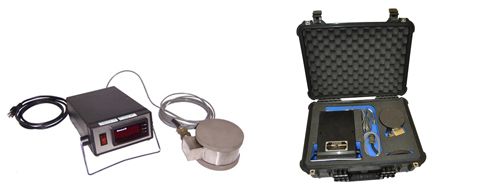

Force Verification Kit #5177
Carver, Inc. offers a Force Verification Kit #5177 that allows customers to perform their own force verification or calibration on their press gauges or force monitoring systems. This kit is designed for use with most Carver presses and includes calibration documents by instruments traceable to NIST. This kit reads full scale in 100 lb increments with a digital readout up to 50 tons (100,000 lbs.).
