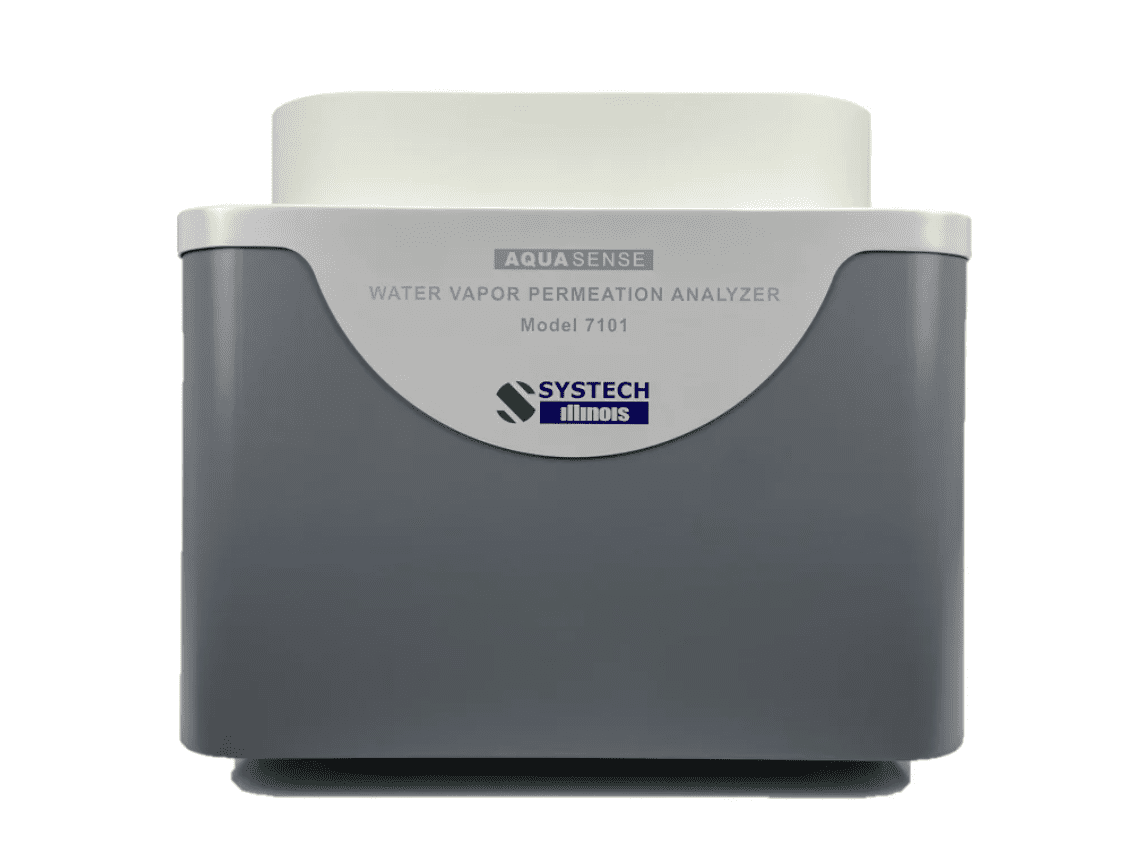

AquaSense 7101 Water Vapor Permeation Analyzer (WVTR)

AquaSense 7101 Water Vapor Permeation Analyzer (WVTR)

AquaSense 7101 Water Vapor Permeation Analyzer (WVTR)

Introducing the Systech Illinois Water Vapor Transmission Rate Analyser 7101, equipped with our cutting-edge high-sensitivity coulometric sensor. This state-of-the-art analyser delivers precise and reliable permeation testing for a wide range of materials such as films, papers, and polymers. Perfect for industries including flexible packaging, food, pharmaceuticals, and plastics, it adheres to critical standards such as ASTM F 1249, ASTM F3299-18, DIN 53122-2, ISO 15105-2, and ISO 15106-3.

SKU: MDL-007101 Category: Systech Illinois

Description

Introducing the 7101 Water Vapor Analyzer (WVTR)

Precision Moisture Measurement, Perfected.

Our 7101 Water Vapor Analyzer delivers unparalleled accuracy and reliability for measuring moisture transmission rates (WVTR) in packaging films. Equipped with a cutting-edge P2O5 sensor, this instrument provides precise results across a wide measurement range (0.002-1000 g/m²/day), making it ideal for both R&D and quality control

Why to avoid outdated 1990’s Infrared sensor and choose P2O5 sensor?

Avoid outdated 1990s infrared sensor technology—prone to inaccuracies, frequent recalibration, and daily conditioning, making it inefficient for modern testing needs.

Systech’s P205 sensor is the best choice, offering precise and reliable measurements with compliance to ASTM F1249 and ASTM F3299-18 standards. Built for top-tier performance and long-term durability, it surpasses industry expectations.

It’s the ideal choice for measuring the moisture vapor transmission rate (MVTR) of liquids through both current and newly formulated packaging film materials. Which is just what you need for speedy, quality control testing.

High-tech WVTR testing

The phosphorus pentoxide (P2O5) moisture sensor consists of a dual platinum winding, formed around a quartz tube. It gives you absolute moisture measurement and doesn’t even need calibrating.

Wide ranging MVTR testing

The stable, high sensitivity P205 coulometric sensor of our water vapor transmission rate testers offer a wide measurement range of 0.002-1000 g/m 2/day.

ASTM F1249 compliant

Our MVTR tester is compliant with several international testing standards including ASTM F1249 and ASTM F3299-18

Specification

Applications: Permeation Testing
Materials: Film, Paper, Plastics and Polymers
Range g/(m2 • day) Unmasked : 0.0025 to 70
g/(m2 • day) Masked: 0.02 to 1000
g/(pkg • day) at 10cc flow: 0.00001 to 0.05 // At 50cc flow up to 0.5
Resolution g/(m2 • day) : 0.0001
Repeatability g/(m2 • day): 0.002 or 2% Whichever is greater
Test Temperature Range: 10ºC to 40ºC (50ºF to 104ºF)
Controlled RH Testing Range: 20 to 90% RH
Sample size: 50cm2, adapters available for smaller sizes

Features & Benefits

ASTM-compliant coulometric sensor technology
Low replacement costs
High sensitivity
Wide humidity range
Easy to operate
Fully automatic
Expandable satellites
Full Windows® operating system
Life-extending, anti-surge sensor protection
NIST traceable, accurate validation in hours
Remote access diagnosis and repair

WVTR testing – made easy

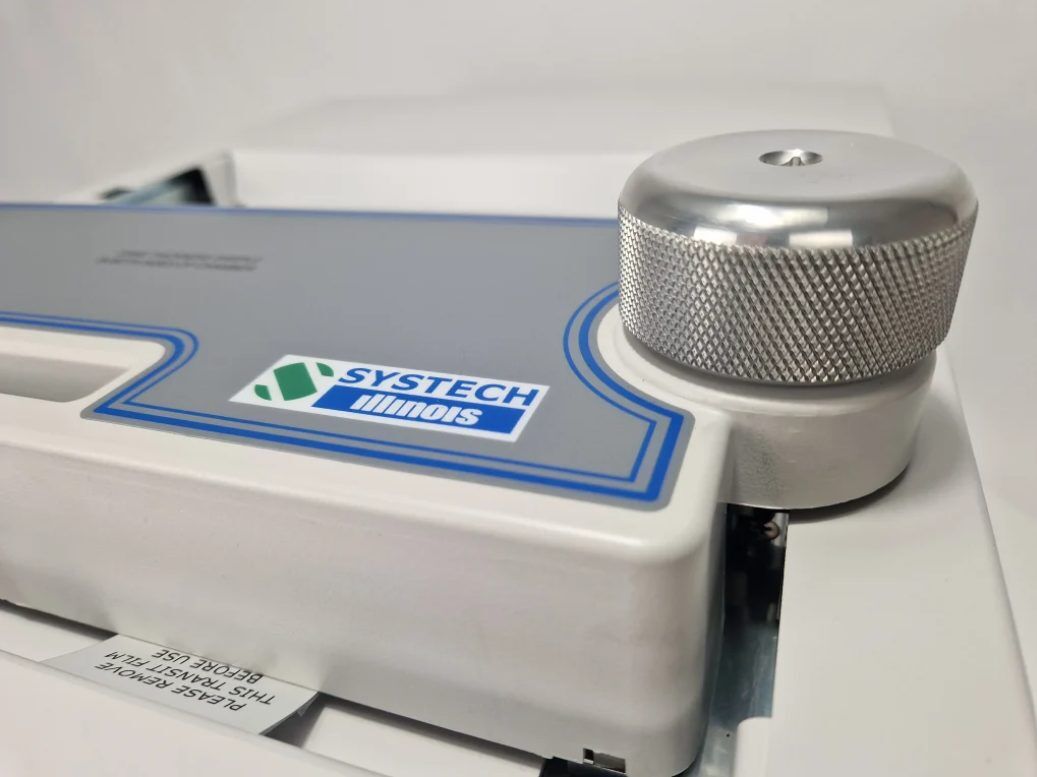

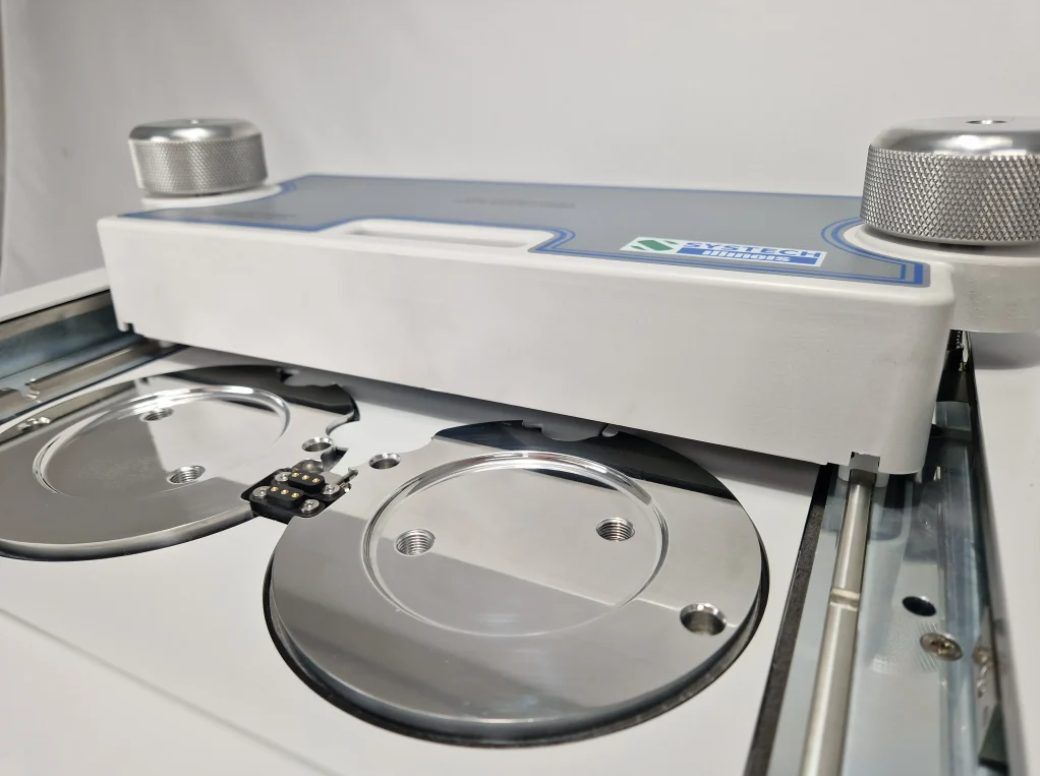

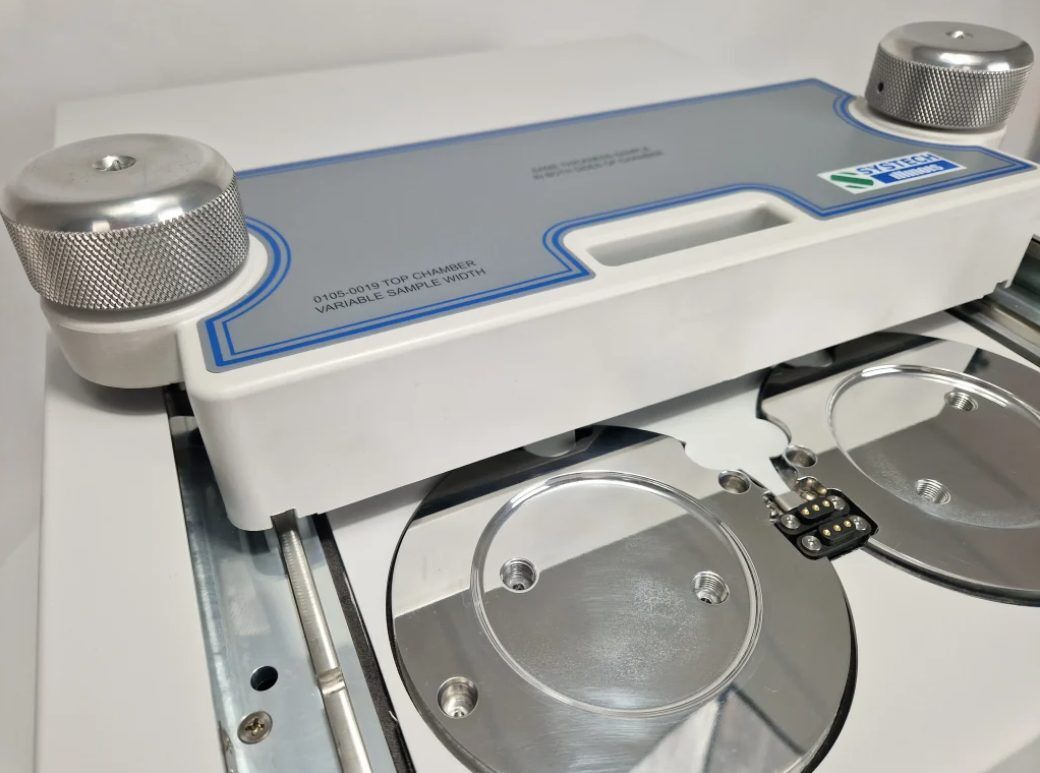

The AquaSense 7101 WVTR tester is simple to operate – just load the film and press a button. It’s really easy with our trademarked Q-Seal™ gas-free cell closure system which reduces testing costs and increases productivity.

Touch-screen MVTR testing
The large, touch screen operated display of our interactive water vapor transmission rate tester is easy to use and intuitive. Just enter the desired conditions and press start.

Multi-faceted MVTR testing
Test up to ten different conditions of temperature and relative humidity at the touch of a button with our trademarked ‘test condition matrix’ (TCM) functionality.

Satellite expansive WVTR testing
Our water vapor transmission rate tester is designed to be expandable and reduce testing costs. In fact, we’re the only major developer to offer satellite expansion functionality.

A low cost WVTR test
Our water vapor transmission rate tester comes with a long lasting coulometric sensor with a low replacement cost. It’s protected with our trademarked ‘anti-surge’ technology which keeps excessive levels of water vapor at bay.

MVTR Networking
The full Windows® operating system allows for safe, secure operation and network connectivity.

Remote WVTR testing support
We can gain remote access to your instrument on request, wherever you are. So you get instant diagnosis and repair system errors without any on-site visit costs.

Additional information

Gas	Water Vapor
Application	Permeation
Measurement range	0.002 to 70 g/(m2 . d). 0.02 to 1,000 g/(m2 . d). when masked
Test temperature range	10 to 40°C (50 to 104°F)
Test RH range	20 to 90% RH
Sample Size	50cm2, adapters available for smaller sizes

Spec sheet US (481.31 KB)

Spec sheet A4 (481.41 KB)

Inexpensive and user replaceable sensor.
This system runs on a full Windows® operating system enabling safe, secure operation and net- work connectivity.
Accurate validation obtained in just a few hours using third party certified gases. NIST traceable.
The sensor continues Systech Illinois’ leadership in providing a longer lasting sensor with a lower replacement cost.
Anti-Surge prevents sensor damage due to excessive levels of water vapor – extending sensor life.
Systech Illinois can access your instrument (with your permission) to diagnose and repair system errors without the cost and time of an on-site visit.
