Hydraulic Compression Plastic/ASTM Presses for PE Sample Preparation
Plastic ASTM Presses
No. 3710-ASTMModel CMG30H-12-ASTM (Model “B”)
Specially configured to perform compression molding of test plaque, bar specimens, polyethylene and other thermoplastic resins.
Carver ASTM presses are specially configured to perform the compression molding of test plaque or bar specimens of Type I, II, III, IV or V polyethylene and other thermoplastic resins. The procedure is in conformance with ASTM Method D 4703, Procedure C. The presses are equipped with heating/cooling platens and a programmable digital controller which has a heating/cooling loop for each platen and built-in program for the required 15°/minute +/-2°C cooling rate.
If you have another plastics testing application or ASTM specification, please Contact us for more information.
Carver Press products are CE AvailableCarver Press products feature a UL listed panel available
Specifications of the Bench Top Auto ASTM Plastic Molding Press – Models AutoFour/15PL-ASTM (4393) and AutoFour/30PL-ASTM (4394)
- Clamping force between the 2 models 15 or 30 (minimum 1,000 lbs)
- Adjustable Daylight 0″ – 13.5″ (Factory set at 4 ½”)
- Stroke 6”
- Four (4) fully threaded columns
- Self-contained 1/4 HP hydraulic unit
- Two (2) 12” x 12” electrically heated cored for cooling, Temperature range up to 343ºC (sized for 8 ºC/minute temperature rise, Platen & perimeter insulation, Programmed platen cooling per ASTM D-4703 Procedure C (formerly D1928 procedure C), Package includes platens designed for flood cooling, inlet and outlet manifolds and valves for platens, programmable temperature controls with ramp capability
- Programmable control system; 25 Programmable segments of clamp pressure, cure time and temperature per recipe, 250 recipe storage capability, Programmable in units of Kg, US Tons, Metric Tons & Pounds
- Two “anti-tie-down” close buttons for operator safety
- Interlocked safety enclosure with hinged door
- 230V 1-Ph supply voltage
- Electrical disconnect (non-fused)
- Dimensions: 50”L-R x 29.5”F-B x 61”H (uncrated)
- Weight: 1,050 pounds (uncrated)
The following calibrations and certifications are provided with the press: Pressure calibration and certification traceable to NIST (10 point check), Calibration of platen temperature controls (10 point check), Temperature uniformity of platens, Platen parallelism, Certification of timers in PLC.
The ASTM Catalog #4393 and #4394 meet the more demanding requirements for molding test plaques in Class 5 polyethylene materials with “Auto-Four” bench top hydraulic compression presses, 15 or 30 tons clamp force. ASTM D4703 (formerly D1928) Procedure C demands accurate and controlled cooling from 180°C to 45°C. The “Auto-Four” presses have electrically heated 12” x 12” platens which are designed for automatic cooling.
- Water Requirements: 8 – 10 GPM (approximate) at 50 psi and 8 – 13 deg C
- Compressed Air Requirements: 0.5 SCFM at 80 psi (Required for platen cooling only)
NOTE: Pressure step-down will relax the force to “0” and rebound to the next lower force setpoint. To run material class 1 thru 4 requires a constant water supply of 13 deg. C (55 deg. F.) To run class 5 material, a constant water supply of 8 deg. C (45 deg. F) is necessary. Water and air cooled chillers for providing the proper process water are available as an option.
Specifications of the ASTM Rubber Molding Press – Model AutoFour/48-19-ASTM (5370)
- Clamping force 48 tons (minimum 1,000 lbs)
- Adjustable Daylight opening 4″ – 15″
- Shut daylight 0” – 11”
- Stroke 4”
- Four (4) columns
- Compatible with ASTM D3182 for preparation rubber test slabs
- Self-contained 1/4 HP hydraulic unit
- Two (2) 19” x 19” electrically heated platens, Temperature range up to 500ºF or 260ºC. All heat controls thru PLC with selectable auto reheat
- Programmable control system; Full touch screen interface, 25 Programmable setpoints of clamp force, cure time and temperature per recipe, 250 recipe storage capability, Programmable in force units of Kg, US Tons, Metric Tons & Pounds, Programmable in temperature units of degree F or C, Automatic bump sequence (can be programmed in any of all segments), Either force or temperature mode can be chosen per segment.
- Two “anti-tie-down” close buttons for operator safety
- Interlocked safety enclosure with hinged door
- 230V 1-Ph supply voltage
- Electrical disconnect (non-fused)
- Design includes wrap around Floor Stand
- Dimensions: 61”L-R x 47”F-B x 71” H (uncrated)
- Weight: 3,500 pounds (uncrated)
The following calibrations and certifications are provided with the press: Pressure calibration and certification traceable to NIST (10 point check), Calibration of platen temperature controls (10 point check), Temperature uniformity of platens, Platen parallelism, Certification of timers in PLC.
| ASTM Chase Frame Kits Includes Two Aluminum Back-up Plates and 50 Mylar Sheets |
||||
| Description (Sample size) |
Catalog Number
|
100 Mylar Sheets (separate purchase) | ||
|---|---|---|---|---|
| Teflon Coated Steel | Stainless Steel | Brass | ||
| 4″ x 4″ x 1/8″ | 4079 | 4080 | 4081 | 4161 |
| 6″ x 6″x 1/8″ | 4082 | 4083 | 4084 | 4162 |
| 8″ x 8″x 1/8″ | 4085 | 4086 | 4087 | 4163 |
Bench Top Compression Molding Presses for Laboratory Applications from Carver, Inc.
Manual ASTM Press for Testing Specimens of Plastics, Elastomers and Other Thermoplastic Materials.
The Manual ASTM Model 12-12H-ASTM (catalog# 4391) was designed to perform the ASTM compression molding of test plaques or bar specimens of Type I, II, III, IV or V polyethylene and other thermoplastic resins. The procedure is in conformance with ASTM Method D 4703 Procedure C (formerly D1928, Procedure C). This compression molding press is equipped with heating and manually water cooled platens and a programmable digital controller which has a heating/cooling loop for each platen and built-in program for the required 15°/minute ±2°C cooling rate.
Specifications of the Bench Top Manual ASTM Plastic Molding Model 12-12H-ASTM (4391-ASTM):
- Clamping force 12 tons
- Adjustable Daylight 0″ – 10″ (Factory set at 4-½”)
- Stroke 5-1/8”
- Four (4) fully threaded columns
- Two (2) 12” x 12” electrically heated steel platens cored for ASTM water cooling, Temperature range up to 343ºC, sized for 8 ºC/minute temperature rise, Platen & perimeter insulation, Programmed platen cooling per ASTM D-4703 Procedure C (formerly D1928 procedure C), Package includes platens designed for flood cooling, inlet and outlet manifolds and valves for platens, programmable temperature controllers with ramp capability, One digital temperature controller per platen
- 0-24,000 lb analog pressure gauge (in 200 lb increments)
- 230V 1-Ph supply voltage
- Electrical disconnect (non-fused)
- Dimensions: 32 ”L-R x 29”F-B x 53”H (uncrated)
- Weight: 770 pounds (uncrated)
Available Options:
- Floor stand 19″L-R x 19″F-B x 30″H Wt 125# (catalog #223171D)
- Floor stand 36″L-R x 26″F-B x 30″H W/6″ Casters Wt 260# (catalog #223215C)
- 12 ton hydraulic unit repair kit (catalog #3729)
- Carver Special Hydraulic Fluid (Oil) (part #2170)
- Two gauge manifold (catalog #2096CE)
- Additional gauge choice for two gauge manifold (each)
- 0 – 500 Lb. gauge, 250 Kg, 5 lb increments (catalog #381042)
- 0 – 1,000 Lb. gauge, 450 Kg, 10 lb increments (catalog #381001)
- 0 – 2,000 Lb. gauge, 900 Kg, 20 lb increments (catalog #381002)
- 0 – 5,000 Lb. gauge, 2250 Kg, 50 lb increments (catalog #381003)
- 0 – 10,000 Lb. gauge, 4500 Kg, 100 lb increments (catalog #381004)
- Digital Gauge (catalog# 6306.BN23 100 lb or 6306.BN22 10 lb)
- Easy read LCD Round Gauge Face
- Stem Mounted for Manual Presses only
- Battery powered
- Readings generate in 100 or 10 pound increments on 24,000 pound gauge
- Approx. accuracy: +/-1% of reading between 1,000 lbs & 24,000 lbs force
The following calibrations and certifications are provided with the press: Pressure calibration and certification traceable to NIST (10 point check), Calibration of platen temperature controls (10 point check), Temperature uniformity of platens, and Platen parallelism.
NOTE: To run material class 1 thru 4 requires a constant water supply of 13 deg. C (55 deg. F.) To run class 5 material, a constant water supply of 8 deg. C (45 deg. F) is necessary. Water and air cooled chillers for providing the proper process water are available as an option.
| ASTM Chase Frame Kits | ||||
|---|---|---|---|---|
| Description (sample size) |
Catalog Number
|
Mylar Sheets Qty (100) |
||
| Teflon Coated Steel | Stainless Steel | Brass | ||
| 4″ x 4″ x 1/8″ | 4079 | 4080 | 4081 | 4161 |
| 6″ x 6″ x 1/8″ | 4082 | 4083 | 4084 | 4162 |
| 8″ x 8″ x 1/8″ | 4085 | 4086 | 4087 | 4163 |
Portable Chillers

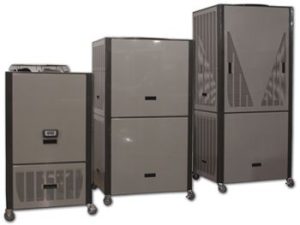

GP Series 5, 10, or 15 HP Portable Chillers
- Environmentally friendly, R410a refrigerant
- Branch motor fusing
- “Y” strainer on process water line to evaporator
- Off-the-shelf modular controller is accurate to within +/- 1°F (+/- 0.6°C)
- Easy-to-read LCD display showing system operating status, Set Point and To-Process temperature; remote mount without special configuration
- Multiple screen, 20 character x 8 line display
- Stamped, stainless steel, horizontally mounted pump assures reliability
- Air-cooled units feature aluminum fin tube condensers with easy on/off, washable air filters
- Water-cooled units equipped with water regulating valves with tube-in-tube condensers
- Electronic hot gas bypass valve
Option:
Item# 994.MK020 Hose & Connections for above Chillers, 20′ – Sold with chiller only (Consult factory if needed aftermarket hose kit. Different item will be supplied)
